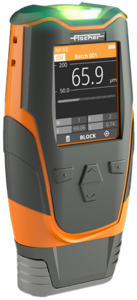

Purpose: Measurement of surface profile depth

Features:

• Measurement of surface profile depth
• Measuring range: 0 – 500 µm
• Accuracy: 0 – 100 µm: ≤ 3 µm, 100 – 500 µm: ≤ 3 % of rated value
• Perfect for use under harsh conditions thanks to its robust housing (dustproof and protected against water jets according to IP65)
• Ergonomic design and 4 large function keys for easy one-handed operation
• Extremely easy to use: Measurement and reporting are easy, even for untrained personnel
• Measures the surface profile depth according to ASTM 4417-B, SSPC-PA 17, SANS 5772, US Navy NSI 009-32 and US Navy PPI 63101-000
• Full oversight of the measurement via LED, sound and vibration
• High-contrast, automatically rotating display is easy to read even in poor lighting
• Available with large memory: 250,000 values in up to 2500 batches
• USB interface for fast and safe data transfer
